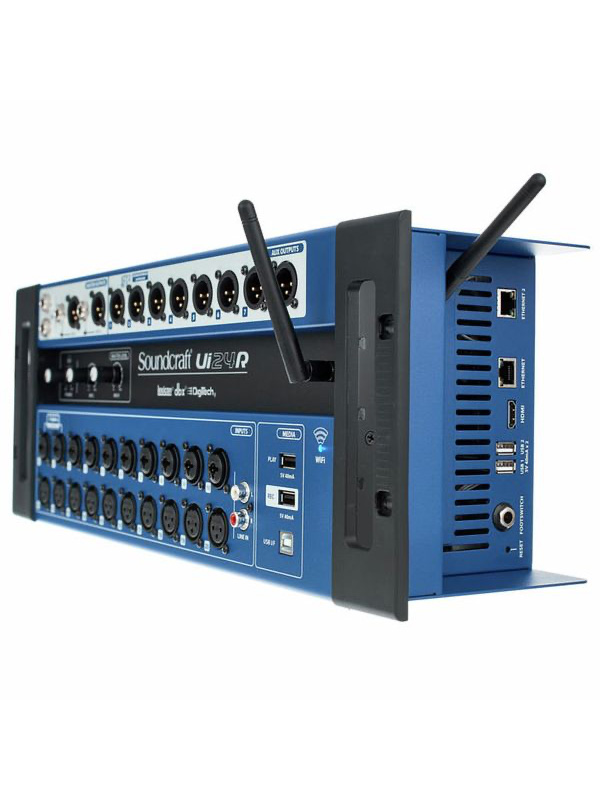

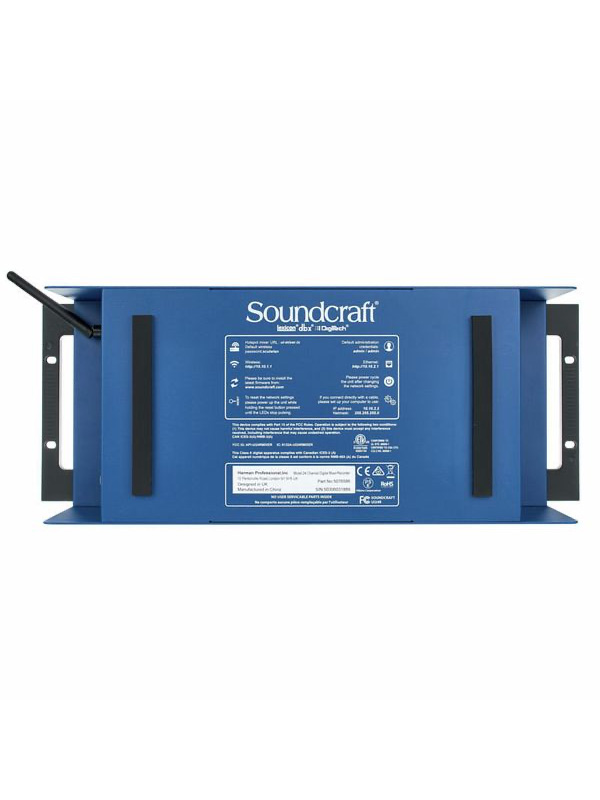

Soundcraft Ui24R

24-Channel Mixing Console with Integrated Stage Box and DSP

• Parallel multitrack recording on USB stick & DAW
• 20 Mic/Line inputs: 10x XLR, 10x 6.3 mm jack combo
• 2 RCA line inputs
• 2-channel USB media player (MP3, WAV, AIFF playback)
• 22-Channel USB recording "Direct to Memory"
• 32-Channel recording interface (I/O via USB-B port)
• Internal sample rate: 48 kHz
• 2 Additional USB ports for controller & updates
• 2 XLR and jack main outputs
• 8 XLR Aux outputs
• 2 Headphone outputs
• RJ45 Ethernet connections
• HDMI port for mixing console control via monitor
• Dual-band WLAN & Ethernet integrated (2 antennas, 2.4/5GHz)
• Compatible with iOS, Android, Windows, Mac OS, Linux (via HTML5)
• Up to 10 devices simultaneously (tablet, smartphone, PC)
• Signal processing from dbx, Lexicon, Digitech
• 20 High-quality Studer mic preamps
• Input channels with 250ms delay, 4-band parametric EQ, gate, compressor, de-esser, HPF
• Channel 1/2 incl. Digitech Amp Modelling
• 8 Aux busses with 31-band graphic EQ, AFS2 feedback suppression, dbx compressor
• 120-Band real-time analyser (inputs and outputs)
• 500 ms (approx. 170 m) delay in the output buses
• 4 Lexicon effect busses (reverb, delay, chorus, room)
• Format: 19" / 4 U
• Dimensions (L x W x D): 177.8 x 482.6 x 165.1 mm
• Weight: approx. 5.1 kg
• Includes Ableton Live Lite
